Technology Stack
An in-depth look at our infrastructure and technical capabilities
Technical Overview
At VerdantVault, we've engineered our colocation facility to meet the demanding requirements of modern IT infrastructure while maintaining our commitment to sustainability. Our technology stack incorporates industry-leading solutions across physical infrastructure, power, cooling, networking, and security systems.
This page provides technical details that influence your colocation decisions, helping you understand the capabilities, reliability measures, and specifications of our facility. Whether you're considering a quarter rack or a private cage, these technical foundations ensure your equipment operates in an optimal environment.
Physical Infrastructure

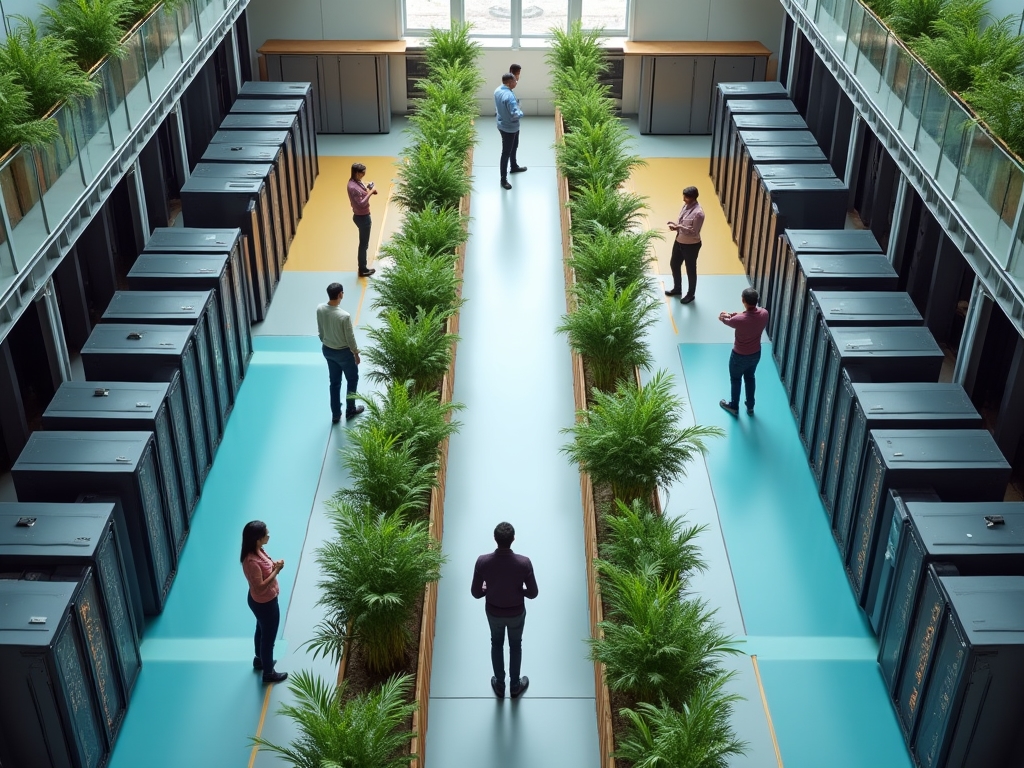

Facility Layout
Our 2,500 square meter facility is strategically divided into security zones with dedicated areas for different colocation options:
- Shared Cabinet Zone: Area for quarter and half-rack clients with shared security but individual locking mechanisms
- Full Rack Zone: Dedicated area for full cabinet deployments with row-level security
- Private Cage Area: Separated section for secure cage deployments with additional security layers
- Meet-Me-Room (MMR): Carrier-neutral interconnection facility with restricted access
- Loading Bay: Secure equipment receiving area with dedicated path to colocation floor
Rack Options & Specifications
We offer standardized rack solutions to ensure compatibility and optimal space utilization:
Quarter Rack Allocation
- 10U of dedicated space in a shared 42U cabinet
- Individual locking door for your section
- Dedicated PDU outlets with remote monitoring
- Standard 19" mounting rails with square holes
Half Rack Allocation
- 21U of dedicated space in a shared 42U cabinet
- Individual locking door for your section
- Dedicated PDU with outlet-level monitoring
- Adjustable mounting rails with cable management options
Full Rack
- Complete 42U cabinet for your exclusive use
- Biometric or combination lock options
- Dual PDUs with outlet-level switching capabilities
- 600mm or 800mm width options with various depth configurations
- Advanced cable management systems included
Private Cage
- Custom-designed secure area with minimum 100 sq ft
- Dedicated biometric access control at cage entrance
- Dedicated CCTV coverage of cage perimeter and interior
- Option for customer-provided locks in addition to facility security
- Flexible expansion capabilities as your needs grow
Mounting & Cabling Standards
Mounting Standards
- Rail Type: EIA-310 compliant 19" square hole rails
- Weight Capacity: Up to 1,500kg per rack (3,300 lbs)
- Rail Adjustability: Front-to-back adjustable mounting depths
- U Markings: Clear unit markings on all rails
- Mounting Hardware: Cage nuts and screws provided
Cabling Standards
- Copper: Cat6A standard for all in-rack copper cabling
- Fiber: OM4 multimode and OS2 single-mode supported
- Pathways: Overhead cable trays with fiber/copper separation
- Labeling: Comprehensive cable labeling system at both ends
- Management: Vertical and horizontal cable management included
Power Infrastructure
Power Redundancy Topology
Our facility implements a comprehensive power redundancy strategy to ensure continuous operation:
Per-Rack Power Provision
| Rack Type | Standard Power | Maximum Available | Voltage/Phase | Circuit Protection |
|---|---|---|---|---|
| Quarter Rack | 1.5kW (6.8A) | 2.5kW (11.4A) | 230V/1-phase | 16A breaker |
| Half Rack | 3kW (13.6A) | 5kW (22.7A) | 230V/1-phase | 32A breaker |
| Full Rack | 6kW (27.3A) | 12kW (54.6A) | 230V/1-phase | 63A breaker |
| Full Rack (HPC) | 12kW (17.3A) | 20kW (28.9A) | 400V/3-phase | 32A 3-phase breaker |
| Private Cage | Custom | Up to 30kW per rack | 230V/1-phase or 400V/3-phase | Custom configuration |
PDU Options
Basic Monitored PDUs
- Total load monitoring
- Threshold alerting
- Network accessible
- Historical usage data
Advanced Switched PDUs
- Outlet-level switching
- Per-outlet monitoring
- Scheduled power cycling
- Secure outlet groups
Remote Power Management
All racks include remote power management capabilities, allowing you to:
- Monitor: Real-time power consumption metrics
- Reboot: Remote power cycling of equipment (switched PDUs)
- Analyze: Historical power usage trends and reports
- Alert: Power threshold notifications
- Calculate: Power efficiency metrics
Cooling & Environmental Controls
Cooling Infrastructure
Our cooling infrastructure implements best practices for efficiency and reliability:
CRAC Units
- Type: Precision Computer Room Air Conditioning units
- Redundancy: N+1 configuration for continuous operation
- Capacity: Total cooling capacity exceeds 150% of maximum IT load
- Efficiency: Variable speed fans and compressors for energy optimization
Hot/Cold Aisle Containment
All colocation areas implement strict containment strategies to maximize cooling efficiency:
- Containment Type: Cold aisle containment with sealed cabinet rows
- Cold Aisle Temperature: Maintained at 21-24°C (70-75°F)
- Hot Aisle Temperature: Typically 35-40°C (95-104°F)
- Humidity Control: Maintained between 40-60% relative humidity
- Airflow Management: Floor grilles with adjustable dampers for precise air distribution
Environmental Sensors
Our facility is equipped with a comprehensive network of environmental sensors:
Temperature Monitoring
- Coverage: Every cold and hot aisle
- Vertical Profiling: Top, middle, bottom of racks
- Logging: 5-minute interval data collection
- Alerts: Immediate notification of threshold violations
Additional Environmental Monitoring
- Humidity: Relative humidity sensors throughout facility
- Airflow: Differential pressure sensors for containment integrity
- Leak Detection: Under-floor water detection cables
- Air Quality: Particulate and contaminant monitoring
Per-Cage Environmental Monitoring
Private cage clients receive dedicated environmental monitoring:
- Custom Sensors: Additional temperature/humidity sensors within your cage
- Dashboard: Real-time web portal for environmental conditions
- Historical Data: 12-month retention of environmental metrics
- Custom Thresholds: Client-defined alerting parameters
Network & Connectivity
Carrier Neutrality
Our facility maintains true carrier neutrality, giving you complete freedom to choose connectivity providers that best meet your requirements. We currently host multiple global and regional carriers, providing diverse options for bandwidth, latency, and cost optimization.
Meet-Me-Room Description
Our purpose-built Meet-Me-Room (MMR) serves as the central connectivity hub of the facility:
- Security: Dedicated access control separate from colocation floor
- Diverse Paths: Multiple building entry points for carrier redundancy
- Patch Panels: Centralized fiber distribution frames
- Cross-Connect Types: Fiber (single-mode, multi-mode) and copper options
- Scalability: Designed with capacity for additional carrier expansion
Cross-Connect Options
| Media Type | Connector Types | Typical Applications | Lead Time |
|---|---|---|---|
| Single-mode Fiber | LC, SC | Carrier connections, long-distance links | 24-48 hours |
| Multi-mode Fiber | LC, SC, MPO | Inter-cage connections, short-distance high-bandwidth | 24-48 hours |
| Cat6A Copper | RJ45 | Management networks, low-bandwidth connections | 24 hours |
| Coaxial | BNC, F-type | Specialized applications, legacy systems | 48-72 hours |
Supported Port Types
Standard Ports
- 1GbE: 1000BASE-T, 1000BASE-SX/LX
- 10GbE: 10GBASE-SR/LR/ER, 10GBASE-T
- 25GbE: 25GBASE-SR/LR
High-Speed Ports
- 40GbE: 40GBASE-SR4/LR4
- 100GbE: 100GBASE-SR4/LR4/CWDM4
- 400GbE: Available on request
Cross-Connect Process
- Request: Submit cross-connect request via customer portal or support ticket
- Approval: Carrier/destination party approves connection request
- Scheduling: Installation time scheduled with typical 24-48 hour lead time
- Implementation: Cross-connect physically installed and tested by our technicians
- Notification: Both parties notified upon completion with test results
- Billing: Monthly recurring cross-connect fee applied to your account
Access Control & Security
Biometric Authentication Details
Our multi-layered biometric system provides enterprise-grade physical security:
- Primary Biometric: Fingerprint recognition with liveness detection
- Secondary Biometric: Iris scanning for high-security areas (optional)
- Access Cards: HID iCLASS SE cards with encrypted communication
- Mobile Access: Smartphone-based authentication option
- PIN Codes: Numeric codes as additional authentication factor
Multi-factor Physical Access Flow
Our comprehensive security process includes:
- Perimeter Security: Secured building entrance with guard verification
- Reception Check-in: ID verification against authorized access list
- Access Card Activation: Temporary or permanent credentials issued
- Mantrap Entry: Interlocking doors prevent tailgating
- Biometric Verification: Fingerprint/iris scan confirmation
- Data Center Floor Access: Final authorization point
- Cage/Rack Access: Individual authorization for specific customer equipment
Visitor Logging
All facility access is meticulously tracked and logged:
- Pre-registration: All visitors must be registered at least 24 hours in advance
- ID Verification: Government-issued photo ID required and scanned
- Authorization Check: Verification against approved access list
- Timestamp Logging: Entry and exit times recorded
- Video Correlation: Access events linked to CCTV footage
- Audit Trail: Complete visitor logs maintained for 12 months
Mantrap Description
Our security mantrap system prevents unauthorized access through tailgating:
- Configuration: Interlocking doors with weight-sensitive floor
- Single-person Detection: Weight sensors and optical systems
- Monitoring: 24/7 security camera coverage inside mantrap
- Alarm Integration: Immediate alert if tailgating detected
- Emergency Features: Fire safety overrides and emergency release
CCTV Specifications
Camera Systems
- Camera Type: IP-based HD cameras (minimum 4MP resolution)
- Frame Rate: 30fps with motion-triggered high-frame-rate mode
- Coverage: 100% of facility with no blind spots
- Low-light Performance: IR illumination for 24/7 visibility
- PTZ Capabilities: Strategic placement of pan-tilt-zoom cameras
Monitoring & Retention
- Monitoring: 24/7 live security personnel monitoring
- Storage: 90-day standard footage retention
- Access Control: Role-based access to recorded footage
- Analytics: Motion detection, object tracking, anomaly detection
- Encryption: All stored footage is encrypted
For detailed information about CCTV data handling, retention periods, and access procedures, please refer to our Privacy Policy.
Remote Hands & Operational Procedures
Remote Hands Scope
Our included remote hands service covers a comprehensive range of tasks:
Visual Inspections
- LED/display status verification
- Physical condition assessment
- Cable connection confirmation
- Environmental condition checks
Basic Operations
- Power cycling equipment
- Button/switch operations
- Basic configuration via console
- Reseating components
Equipment Handling
- Package receiving and unpacking
- Inventory verification
- Basic equipment mounting
- Securing equipment for shipping
Cabling Tasks
- Cable installation and labeling
- Patch cord connections
- Basic cable organization
- Visual cable tracing
Service Level Agreements
Our remote hands service operates under clear SLA commitments:
| Priority | Response Time | Resolution Target | Coverage |
|---|---|---|---|
| P1 - Critical | 15 minutes | 2 hours | 24/7/365 |
| P2 - High | 1 hour | 4 hours | 24/7/365 |
| P3 - Normal | 4 hours | 8 hours | Business hours |
| P4 - Low | 8 hours | 24 hours | Business hours |
Equipment Deliveries & Client Meetings
Our facility includes comprehensive support for equipment logistics:
- Receiving Dock: Dedicated loading area with freight elevator
- Package Processing: Inventory verification and secure storage
- Delivery Notification: Immediate alert upon equipment arrival
- Meeting Rooms: Private spaces for equipment handover or team work
- Scheduling: 24-hour advance booking for equipment deliveries
- Transport: Secure internal transport to your rack/cage location
Note: For equipment deliveries, please schedule at least 24 hours in advance through our customer portal or by contacting our operations team.
Monitoring, Alerting & Management
Environmental Telemetry
Our comprehensive environmental monitoring system tracks critical facility metrics:
- Temperature Monitoring: Multiple sensors per aisle with vertical profiling
- Humidity Tracking: Relative humidity sensors throughout facility
- Airflow Analysis: Pressure differential sensors for containment integrity
- Leak Detection: Underfloor water detection cables
- Air Quality: Particulate monitoring and fire detection
Power Monitoring
Extensive power metrics are collected and analyzed at multiple levels:
- Facility Level: UPS load, generator status, transfer switch position
- PDU Level: Circuit load percentage, current draw, power factor
- Outlet Level: Individual outlet consumption (with switched PDUs)
- Trending: Historical usage patterns and capacity planning
- Efficiency Metrics: PUE calculation and optimization tracking
Network Monitoring
Basic network infrastructure monitoring includes:
- Connectivity: Uptime monitoring of core network infrastructure
- Utilization: Bandwidth usage tracking on shared infrastructure
- Security: DDoS detection and anomaly identification
- Cross-connects: Status monitoring of physical layer connections
Notification Channels
Alerts and notifications are delivered through multiple channels:
- Email: Detailed alert notifications with actionable information
- SMS: Critical alerts sent via text message
- Phone: Automated calls for severe issues requiring immediate action
- Customer Portal: Real-time status dashboard and alert history
- Mobile App: Push notifications and status updates
- Ticketing System: Automatic ticket creation for tracked issues
Compliance & Certifications
Operational Compliance
Our facility operations adhere to Latvian and European regulations governing data centers and information security:
Data Protection & Privacy
- GDPR Compliance: Full adherence to EU data protection regulations
- Latvian Data Protection Law: Compliance with local data protection requirements
- Privacy Controls: Strict access controls for personal data
- Data Processing: Transparent handling of all personal information
- Subject Rights: Procedures to support data subject access requests
Facility & Safety Standards
- Building Codes: Compliance with Latvian construction regulations
- Fire Safety: Advanced fire detection and suppression systems
- Electrical Safety: Regular testing and certification of electrical systems
- Occupational Safety: Adherence to workplace safety requirements
- Environmental Regulations: Compliance with local environmental laws
While specific certifications are continuously being updated and expanded, our facility currently operates in accordance with industry best practices and all applicable Latvian laws for data centers and colocation services. Our operations team can provide the most current compliance information for your specific regulatory requirements.
For clients with specific compliance needs, we offer documentation and access for third-party audits to verify our controls and procedures meet your regulatory requirements.
